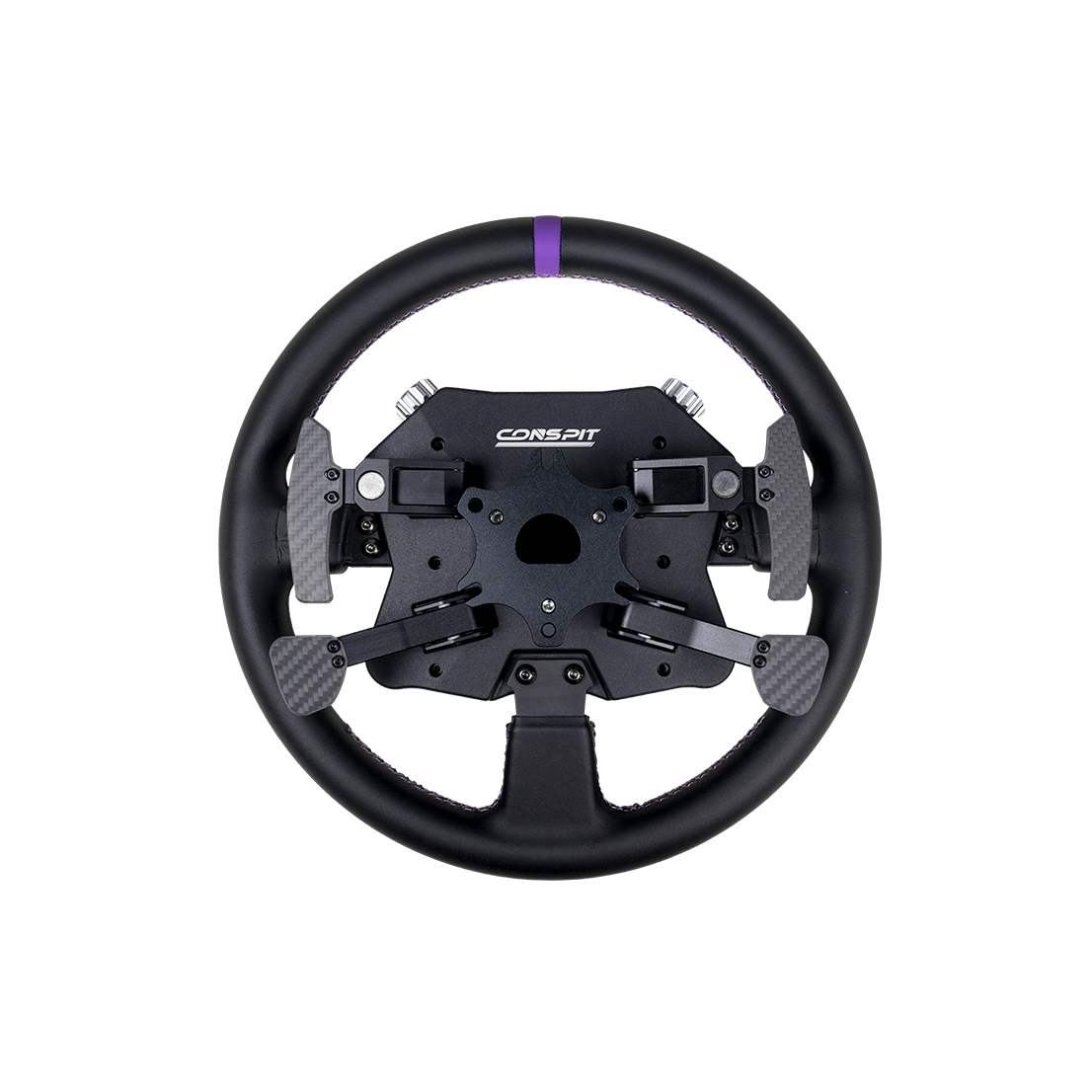

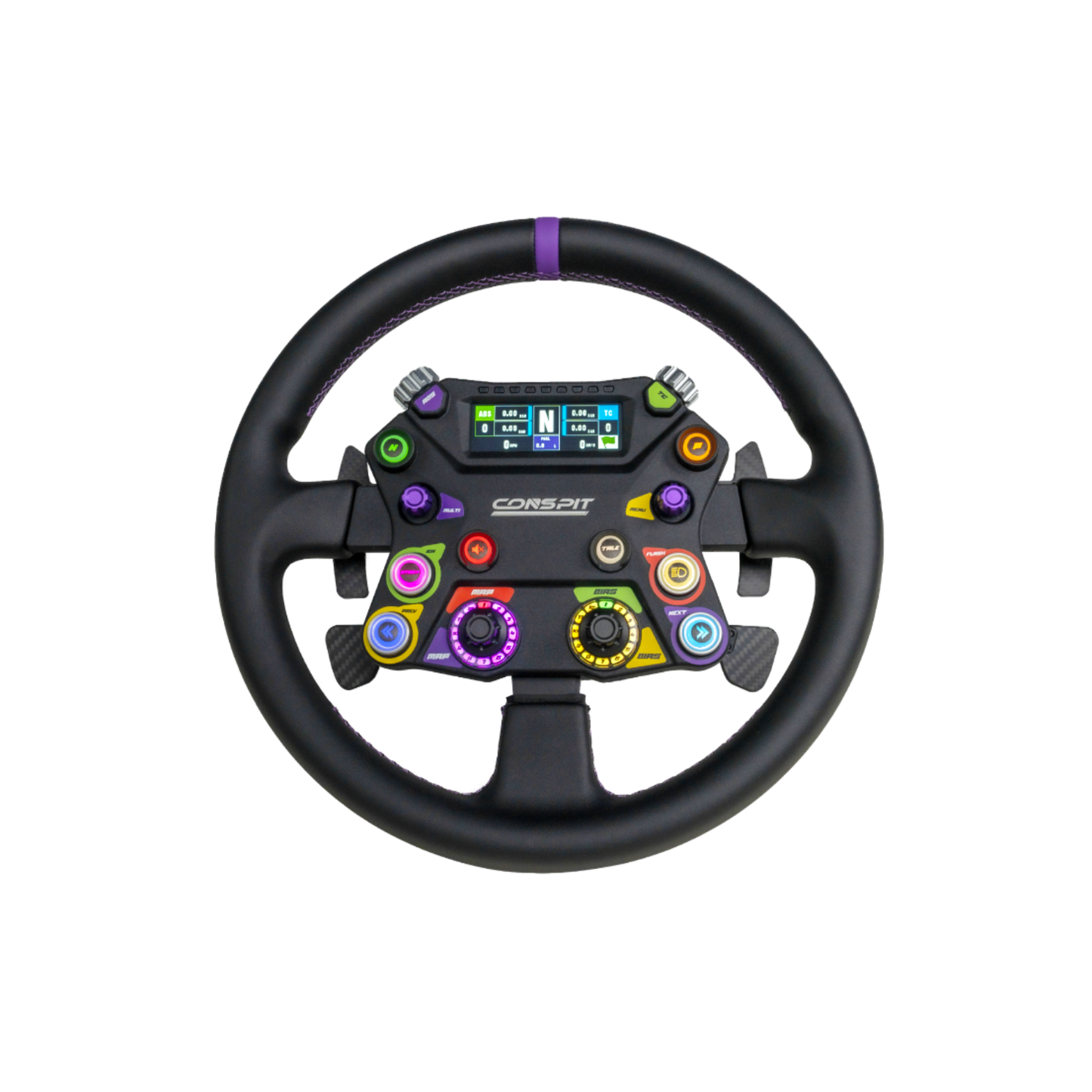

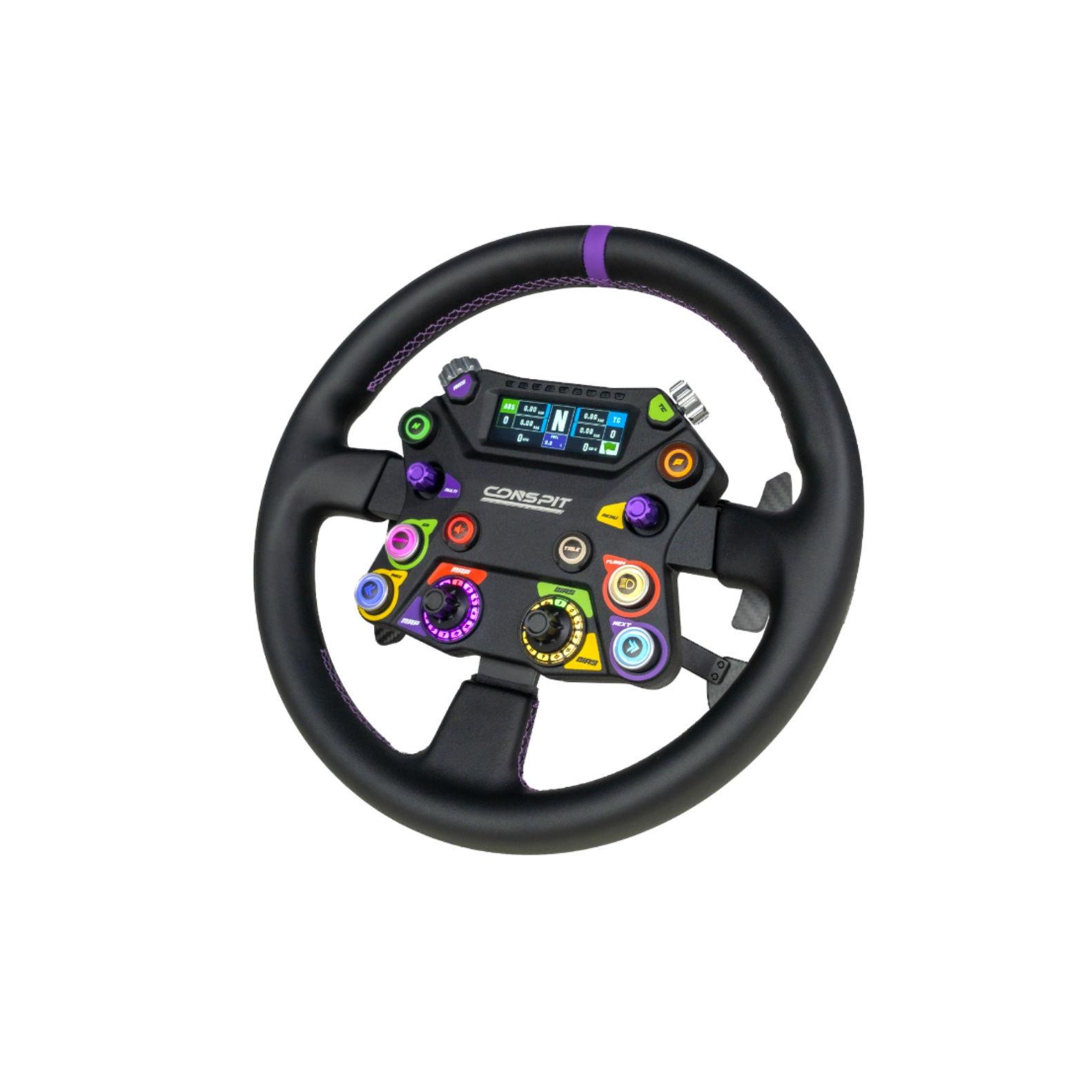

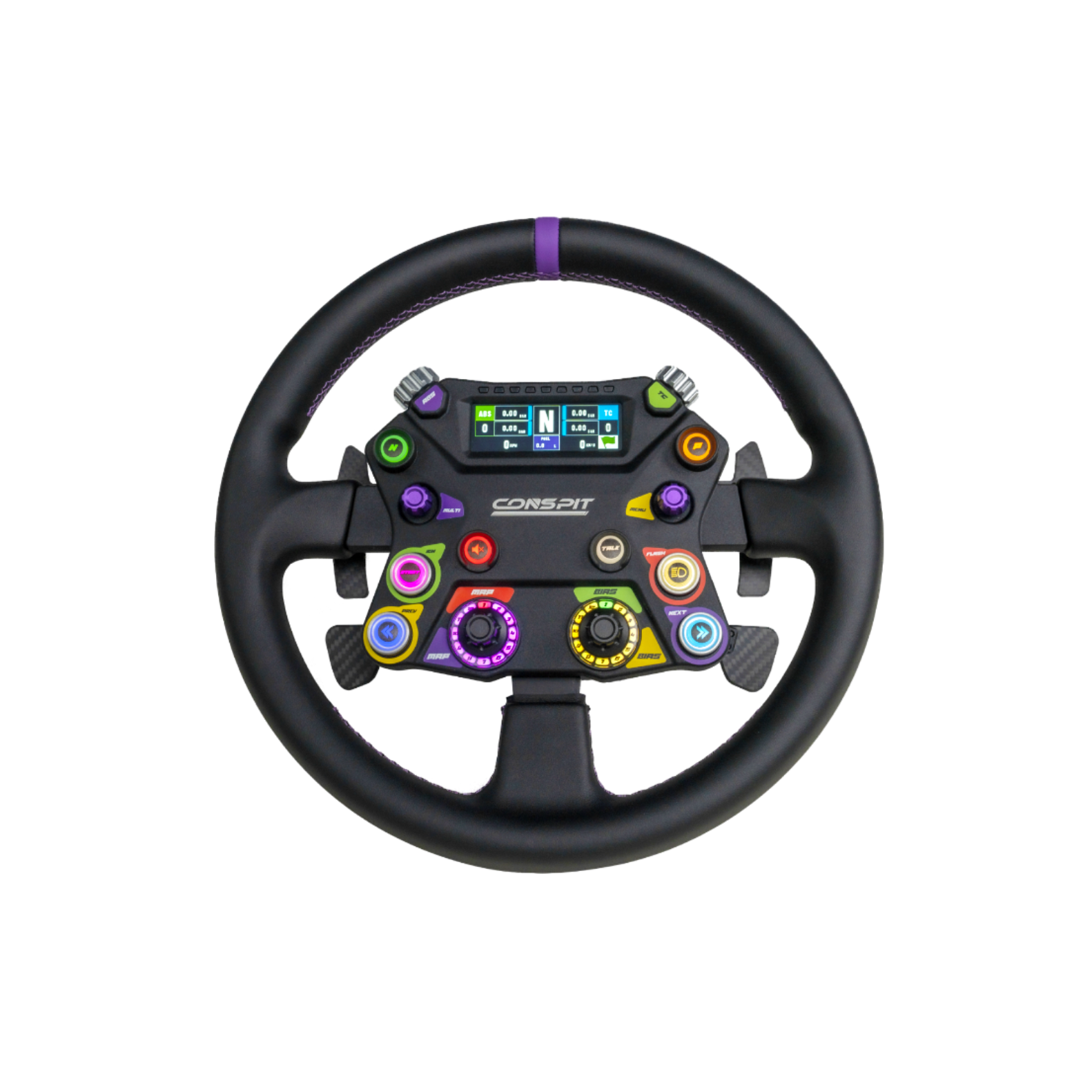

Conspit 310 APEX

Master a New Dimension

The 310 APEX serves as an open-wheel hub, featuring CONSPIT's exclusive 2.99-inch built-in LCD display and compatibility with multiple rim designs. Its full-metal construction delivers premium craftsmanship, combined with innovative control features that elevate entry-level sim racing to new heights.

Full Aluminum Alloy Structure - Robust Yet Lightweight

The front and rear housings are precision-crafted from die-cast aluminum alloy, achieving optimal weight reduction, rigidity, and vibration damping. Enhanced acoustic and haptic feedback ensures an immersive driving experience.

3D Front Panel - Where Design Meets Function

Leveraging the flexibility of aluminum alloy casting, the 310 APEX features a contoured 3D front panel that follows CONSPIT’s hardware ecosystem design language. Its ergonomic layout provides intuitive access to controls for superior handling.

Standard Synthetic Leather Rim - Comfort & Durability

Made from wear-resistant eco-friendly microfiber, the rim features seamless stitching at the grip zones, accented with purple stitching and a center alignment marker for long-lasting comfort and precision.

Pro-Level Controls - 104 Fully Customizable Inputs

Equipped with encoder remapping, the wheel supports up to 104 independent inputs, meeting the demands of competitive sim racing. Future firmware updates will expand functionality, including rotary macro mapping.

8 Customizable RGB Buttons - Tactile & Responsive

With 500g actuation force and short-throw feedback, these buttons deliver crisp inputs. Full RGB lighting works with CONSPIT Link 2.0 and SimHub for dynamic telemetry visualization.

2 Programmable Encoder Dials - Versatile Input Options

Strategically placed for thumb operation, each dial supports 24 input combinations via remapping, offering extensive in-car adjustment flexibility.

2 Funky Switches - Multi-Function Control

A sim racing essential, each physical button can be assigned up to 7 different commands for efficient control.

Dual-Mode Rotary Encoders - Incremental & Absolute

Two 12-step rotary knobs allow seamless switching between incremental (+/-) and absolute positioning modes via software. Each step features RGB backlighting for clear visibility.

Encoder Remapping (Patent Pending)

With a simple turn of the function dial, users can instantly remap the two encoders for difffferent in-game functions. Example: - Position 3: Encoder 1 = TC1, Encoder 2 = TC2 - Position 4: Encoder 1 = Brake Bias, Encoder 2 = ABS

2.99" Built-In LCD Display - Real-Time Telemetry

CONSPIT’s self-developed screen supports 7 customizable dash pages for critical racing data, with more layouts coming via updates.

Advanced Lighting System - 41 Fully Customizable LEDs

Includes 8 button backlights, 9 RPM LEDs, and 24 rotary encoder position lights—all programmable via SimHub for race and telemetry feedback.

Magnetic Hall-Effect Paddle Shifters - Adjustable Resistance

Positioned for optimal reach, the shifters offer two resistance levels (660gf, 900gf) with precise magnetic actuation for crisp gear changes.

Standard Dual Clutch Paddles

Fine-tuned with expertise, these paddles support various types of clutch controls for flawless race starts.

CDR Quick-Release System (Optional) - Cross-Platform Compatibility

Embrace an open ecosystem with base-side quick-release, enabling seamless multi-platform integration.

Quick-Con Adapter with Independent USB Connection

- Standard 70mm PCD adapter, ensuring broad compatibility with various options. - Heavy-duty quick connector ensures stable, reliable connections. - Comes with a detachable coiled cable featuring a direct USB connection.
