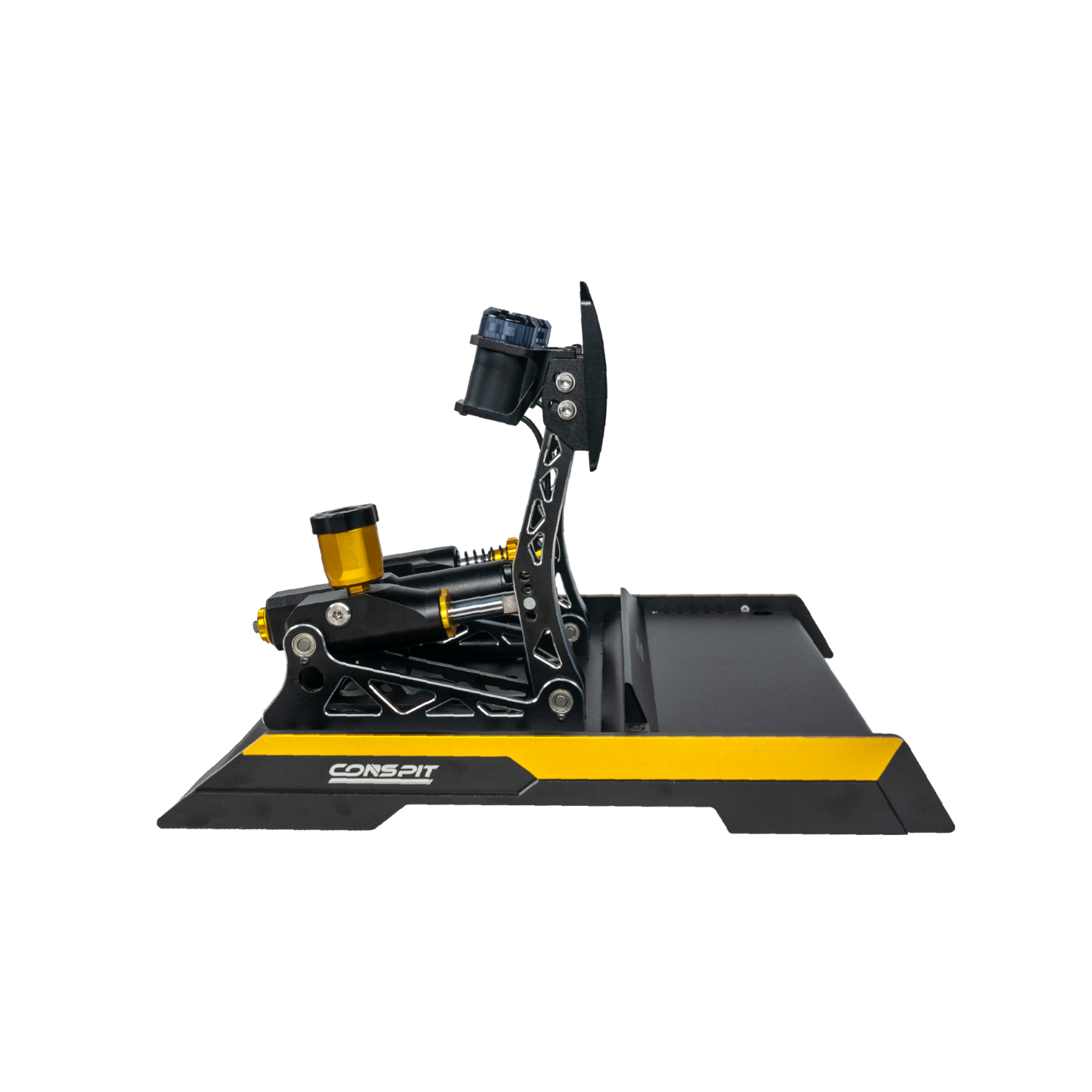

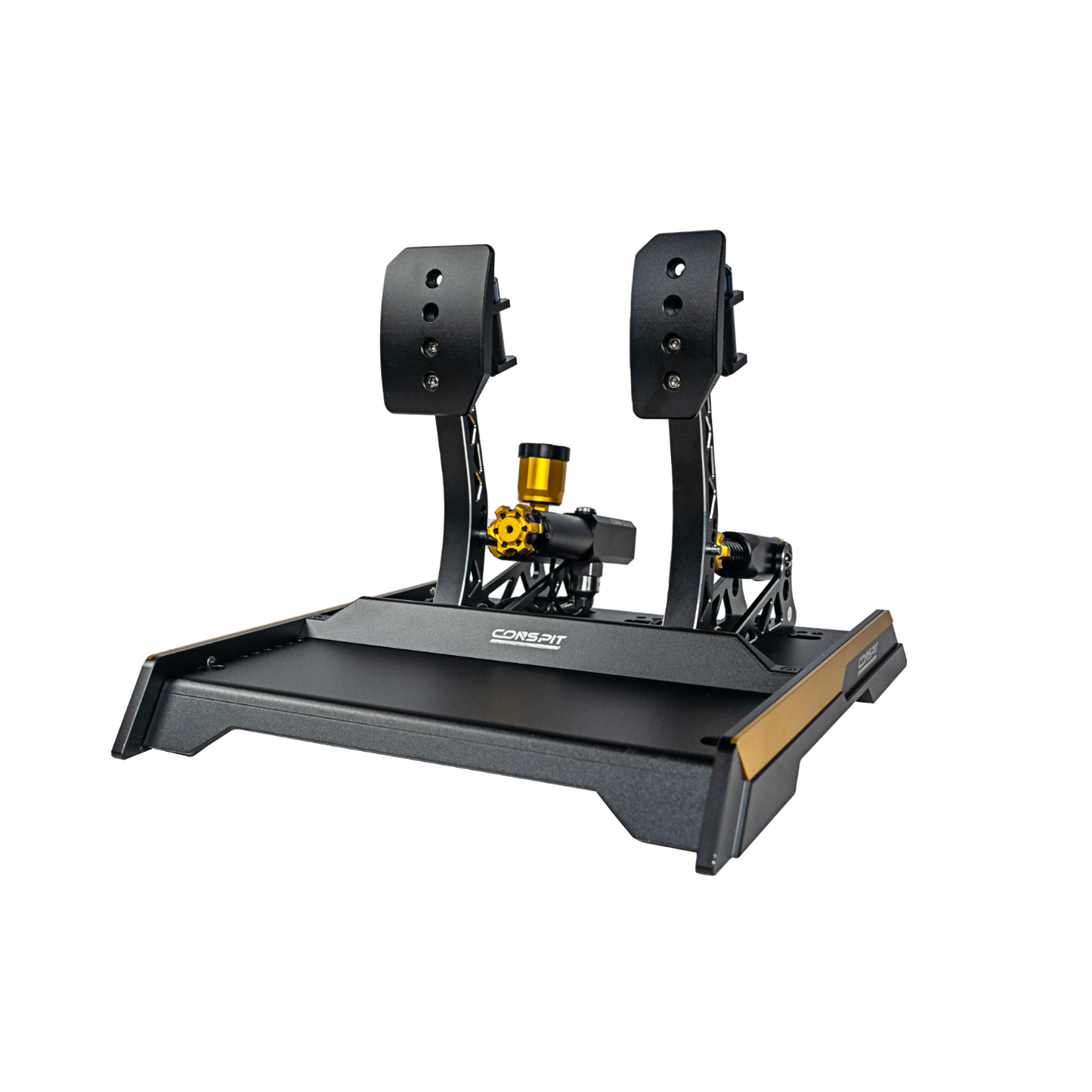

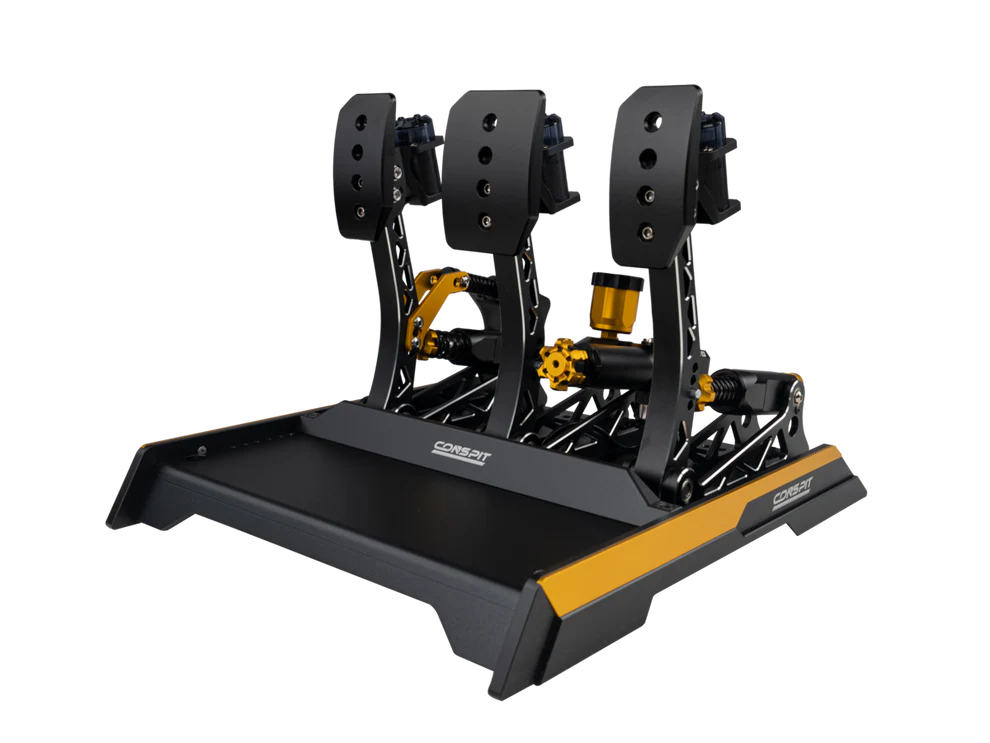

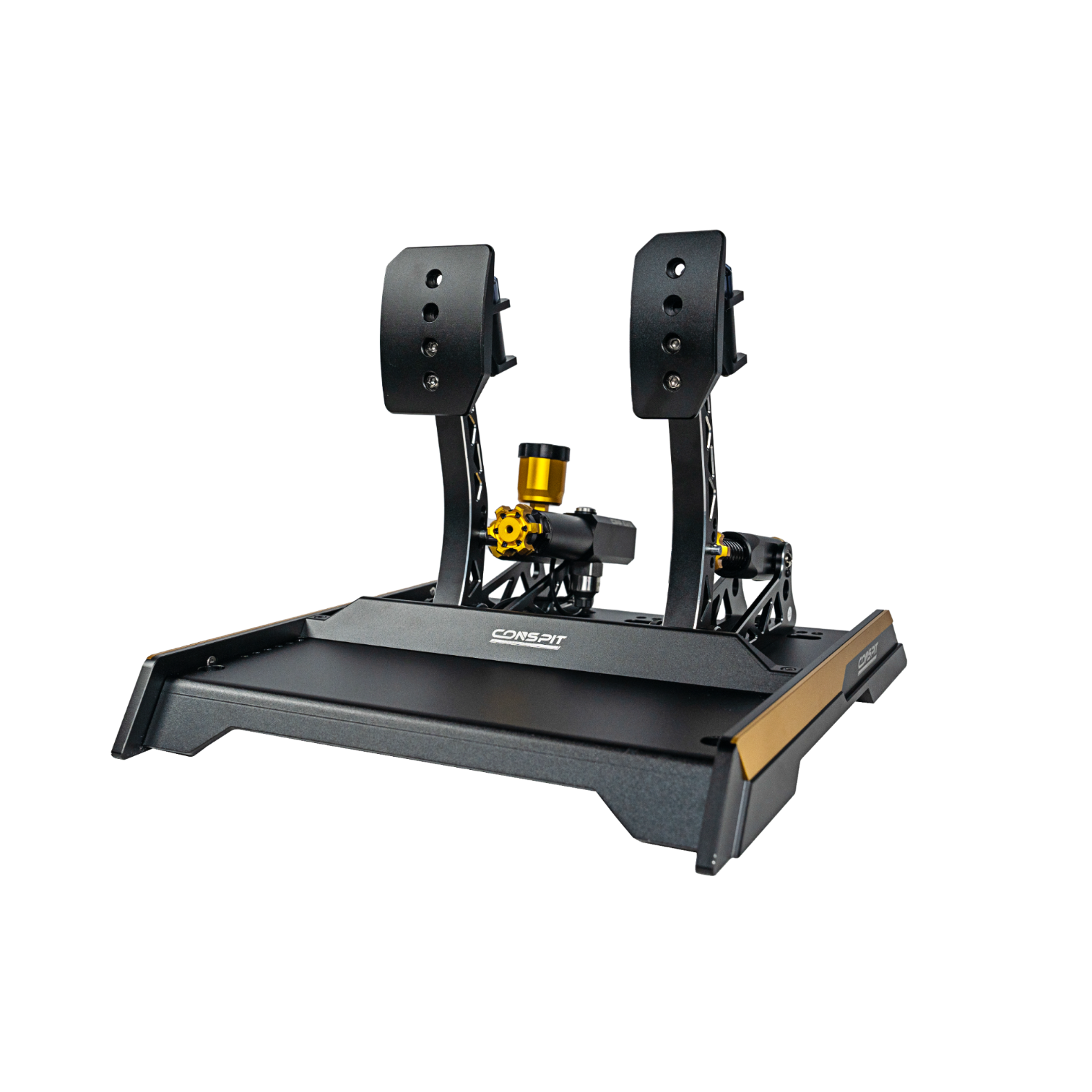

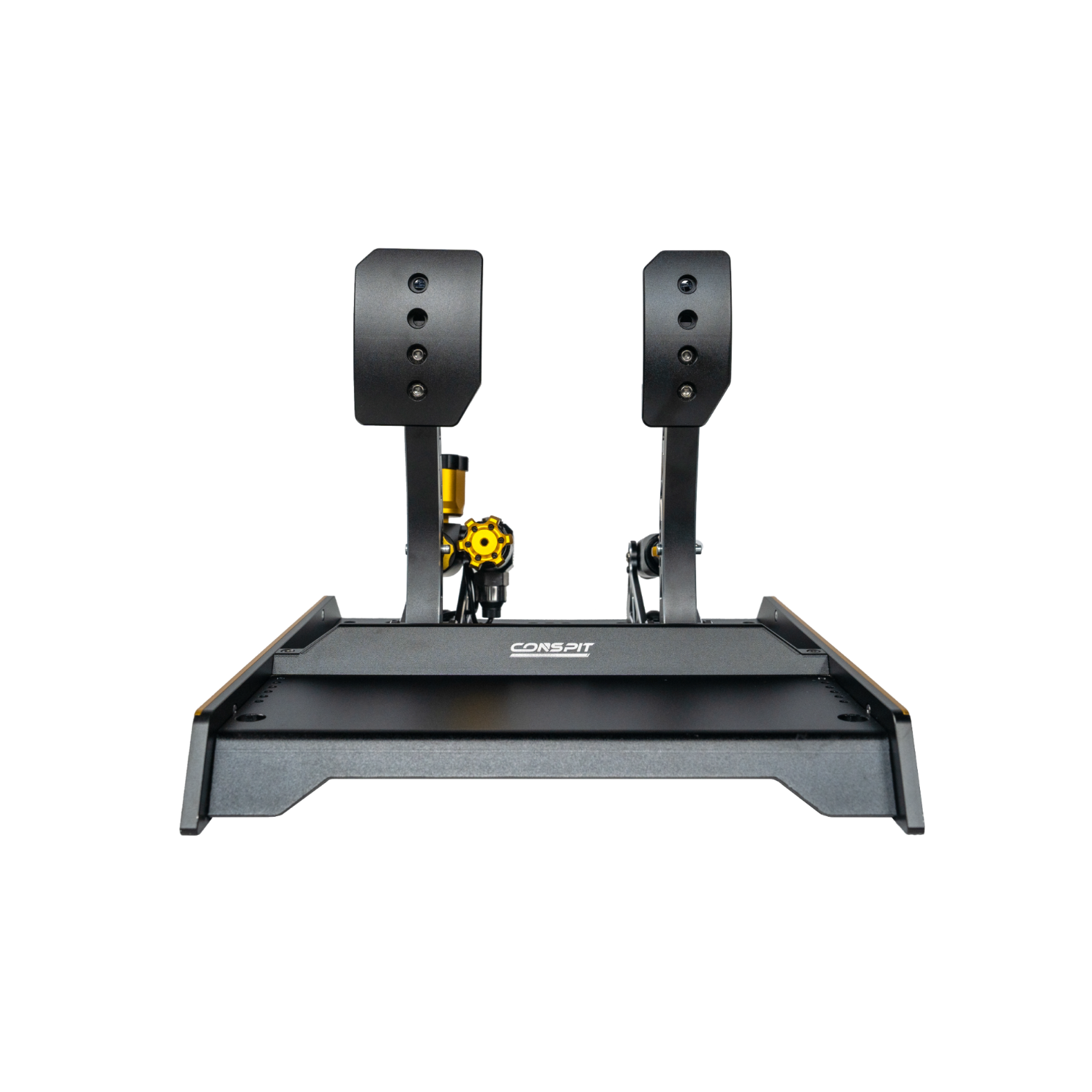

Conspit CPP EVO V2

The Conspit CPP EVO V2 is the next step in the evolution of CONSPIT’s hydraulic pedal platform. Building on the proven foundation of the original CPP EVO, the V2 focuses on meaningful mechanical improvements—enhancing durability, brake modulation smoothness, and tuning flexibility—without altering the core architecture.

Rather than cosmetic updates, the EVO V2 delivers substantial upgrades to the hydraulic system, sealing design, and pedal feel adjustment. The result is a hydraulic pedal set tailored for serious sim racers who want authentic brake feel and reliability, without the complexity of full motorsport-grade systems.

Key Highlights

• Upgraded V2 Hydraulic Brake System

• Chrome-Plated 45-Steel Hydraulic Piston

• Dual Step-Seal Sealing Structure (Rated up to 400 bar)

• Two-Stage Brake Feel Tuning (Spring + Elastomer)

• Expanded Pedal Feel Customization

• Durability Tested to 500,000 Cycles

Hydraulic System Upgrade (V2)

The CPP EVO V2 features a significantly improved hydraulic brake assembly. The previous aluminum piston has been replaced with a chrome-plated 45-steel piston, offering higher surface hardness, improved wear resistance, and superior long-term dimensional stability.

This enhancement minimizes internal deformation and reduces friction over time, delivering smoother brake actuation, more consistent modulation, and a longer service life.

Dual Step-Seal Sealing System

The hydraulic sealing system has been redesigned from a single polyurethane seal to a dual step-seal configuration. This structure combines an elastic O-ring with a PTFE sliding ring, greatly improving pressure resistance and leak prevention.

Compared to the earlier design, internal friction is reduced by approximately 50%, resulting in a smoother pedal return and improved precision during trail braking. The system is rated for pressures up to 400 bar, ensuring reliable performance even under aggressive braking.

Pedal Feel Optimization & Tuning

The EVO V2 introduces a refined spring and elastomer tuning system, offering greater adjustability than the previous generation.

• Die springs control the initial brake response, providing a linear and predictable pedal feel.

• Elastomers manage end-stroke stiffness, defining maximum braking force.

• Multiple stiffness options are included, allowing drivers to independently tune early pedal travel and peak pressure.

This separation enables more precise customization to suit different driving styles and car setups.

Enhanced Mechanical Durability

Durability testing for the CPP EVO V2 has been increased from 200,000 to 500,000 cycles, ensuring consistent performance over extended use.

Additional mechanical improvements include upgraded push-rod guides for the throttle and clutch pedals. The previous NBR rubber rings have been replaced with extended PTFE bushings, improving axial alignment and delivering smoother, more consistent pedal movement.

Proven Architecture & Compatibility

Externally, the CPP EVO V2 remains visually identical to the original CPP EVO. All enhancements are internal, preserving the same pedal structure, mounting points, and overall dimensions. This ensures full compatibility with existing simulator setups.

Connectivity & Software

• Direct USB connection to Windows PC

• Standalone pedal operation

• Compatible with CONSPIT LINK 2.0 software

Frequently Asked Questions

What’s new in the Conspit CPP EVO V2 compared to the original EVO?
The EVO V2 introduces internal engineering upgrades, including a chrome-plated steel hydraulic piston, a dual step-seal system, reduced friction, and improved long-term durability—while maintaining the same external design and mounting compatibility.

Are the CPP EVO V2 pedals hydraulic?
Yes. The CPP EVO V2 features a true hydraulic brake system designed for pressure-based braking and consistent modulation.

Can the brake feel be adjusted?
Yes. The spring and elastomer system allows independent tuning of initial pedal response and end-stroke stiffness.

How durable are the CPP EVO V2 pedals?
The hydraulic system has been tested to 500,000 cycles, ensuring reliable performance under repeated and extended use.

Are the CPP EVO V2 pedals PC compatible?
Yes. They connect directly to a Windows PC via USB and operate as a standalone pedal set using CONSPIT LINK 2.0 software.

Where can I buy the Conspit CPP EVO V2 in India?
The Conspit CPP EVO V2 Hydraulic Sim Racing Pedals are officially available in India through Virtual Racing Hub, offering local support and professional simulator integration guidance.
