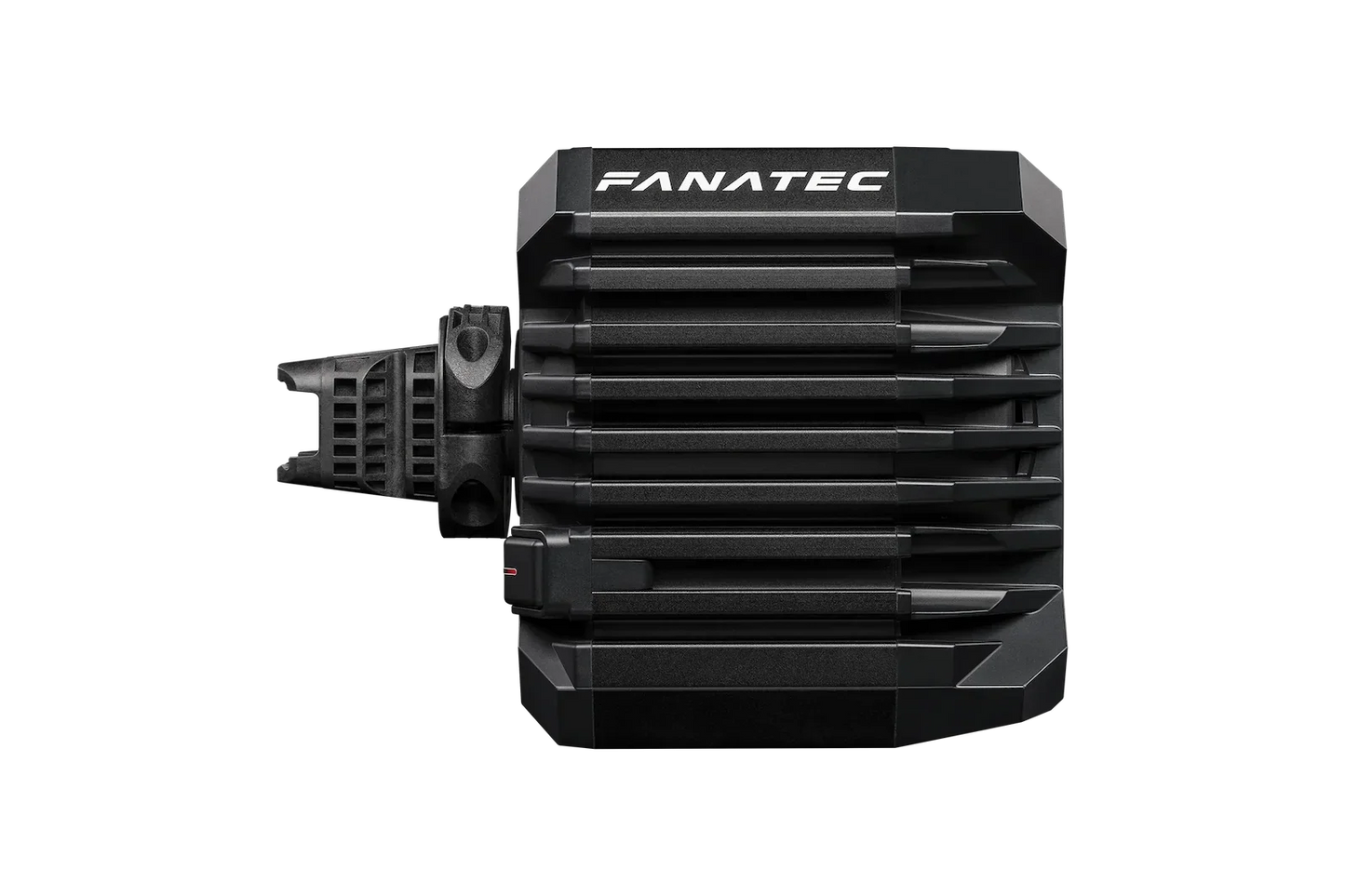

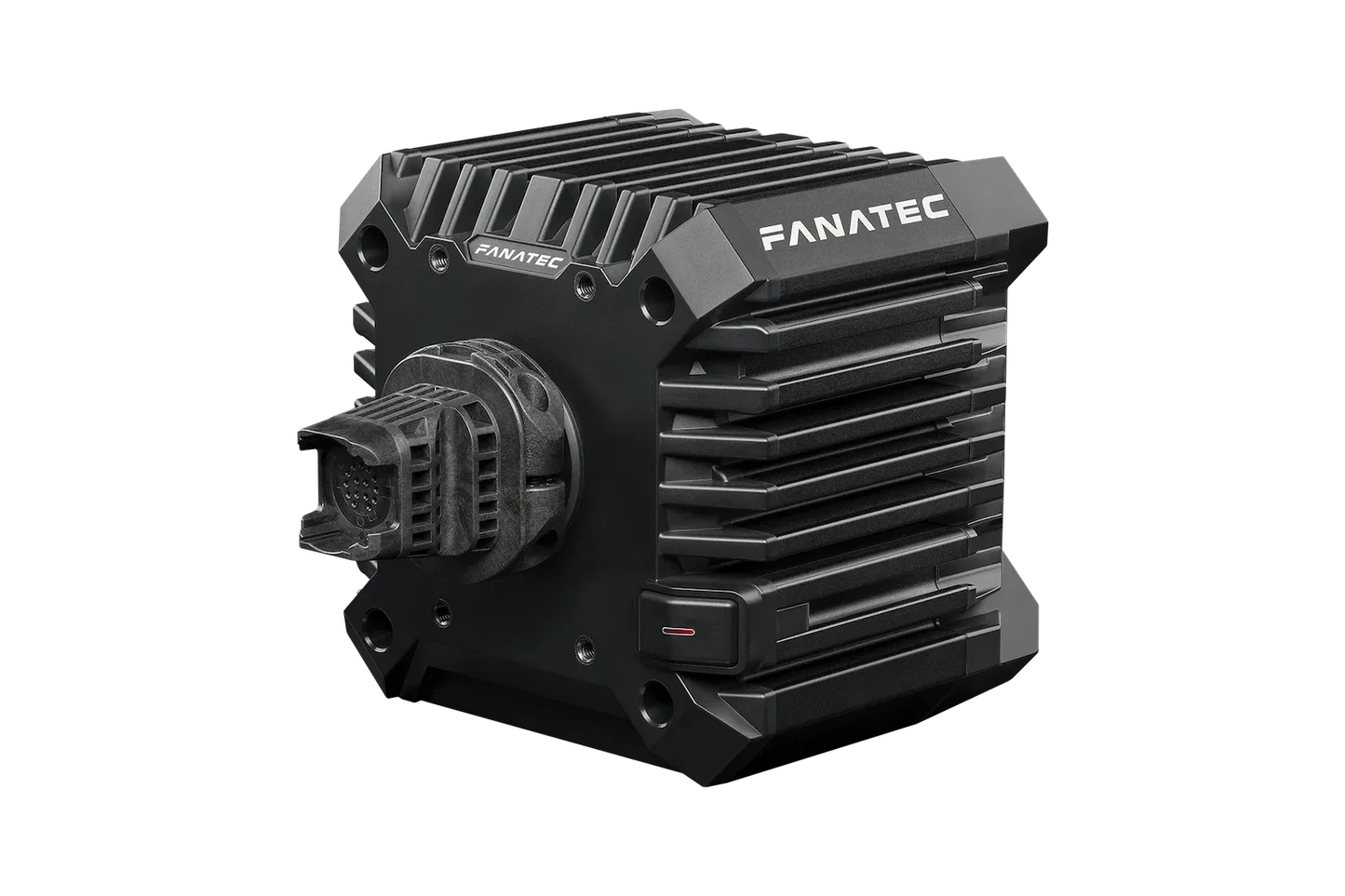

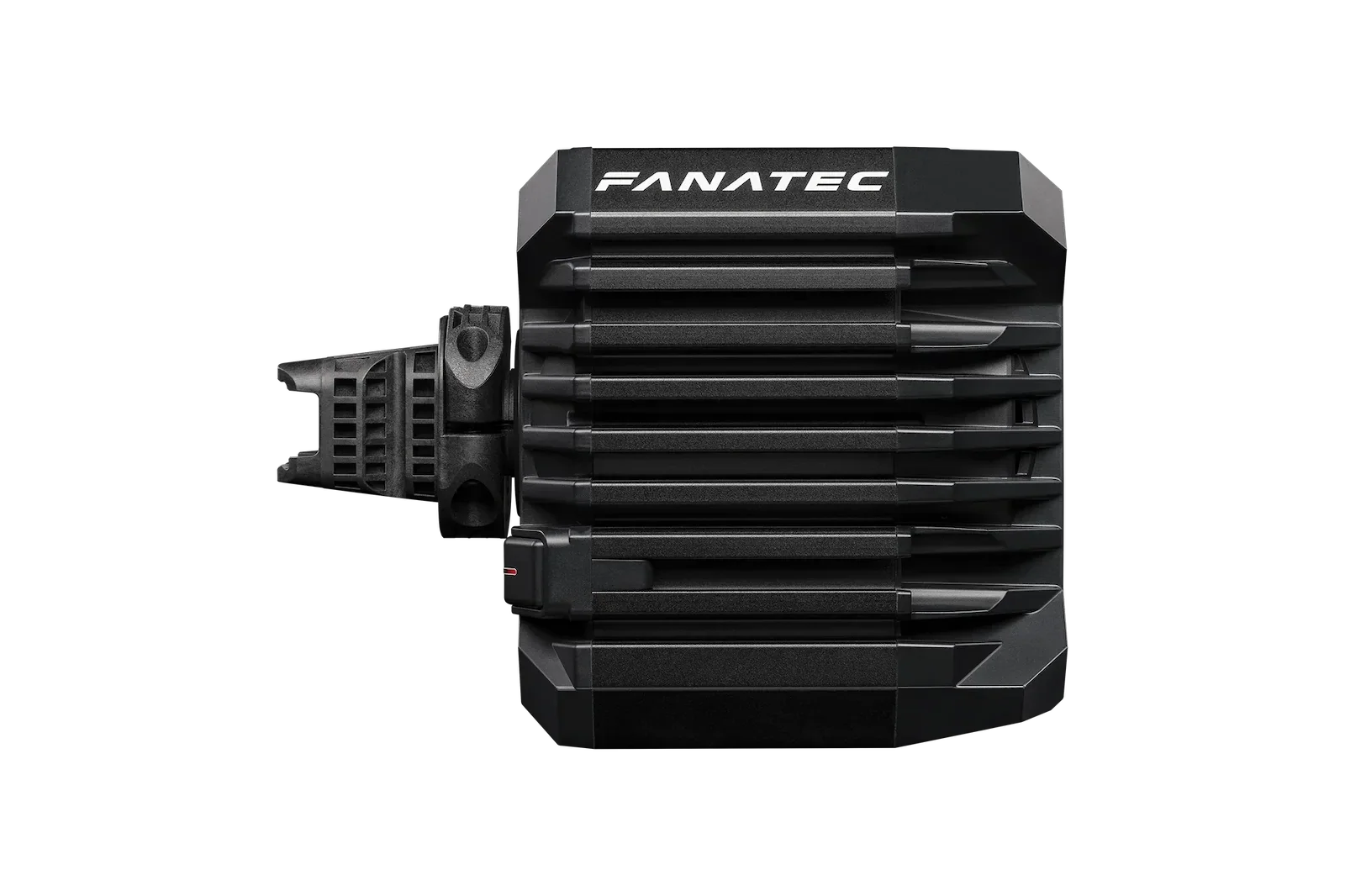

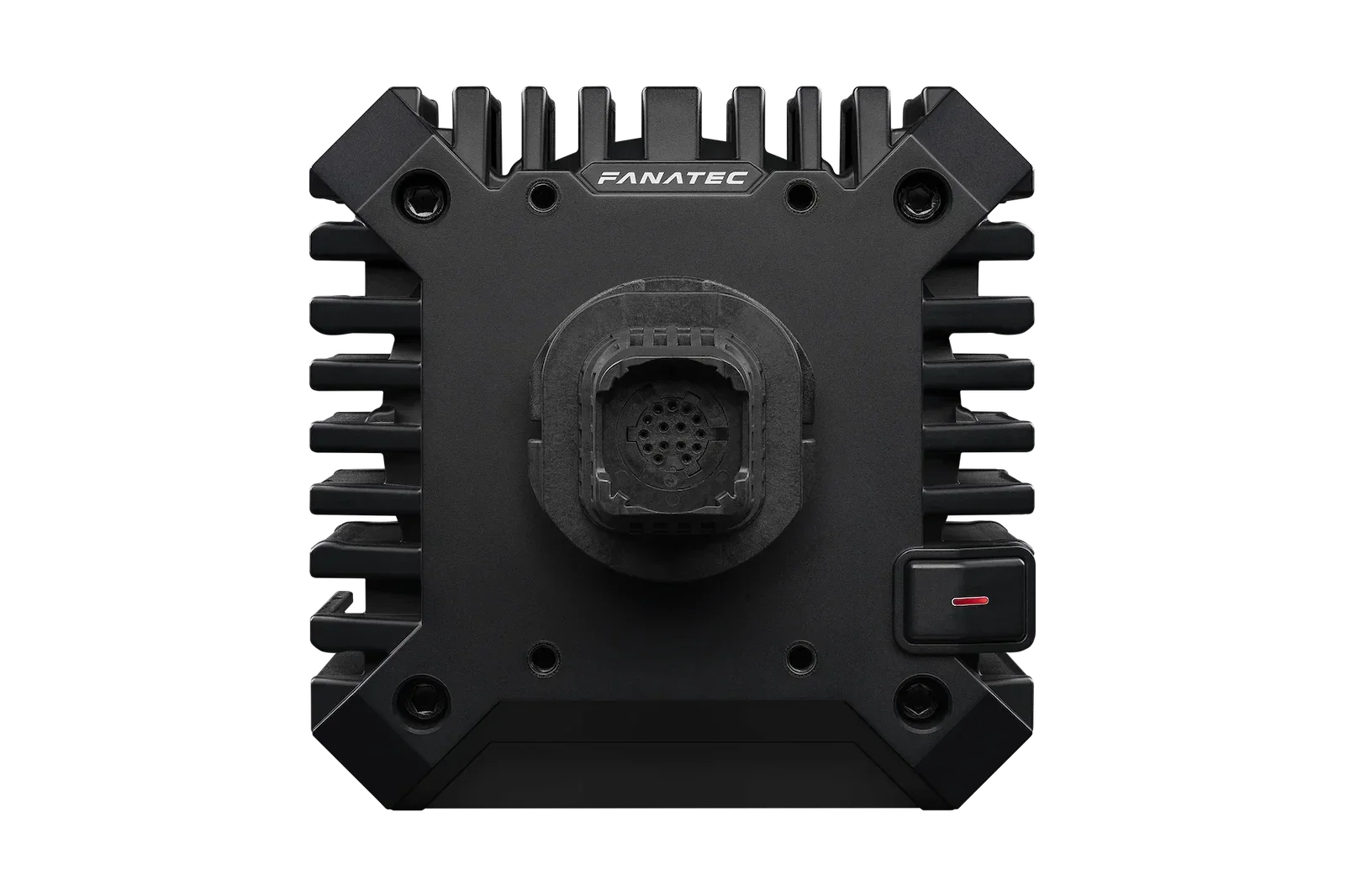

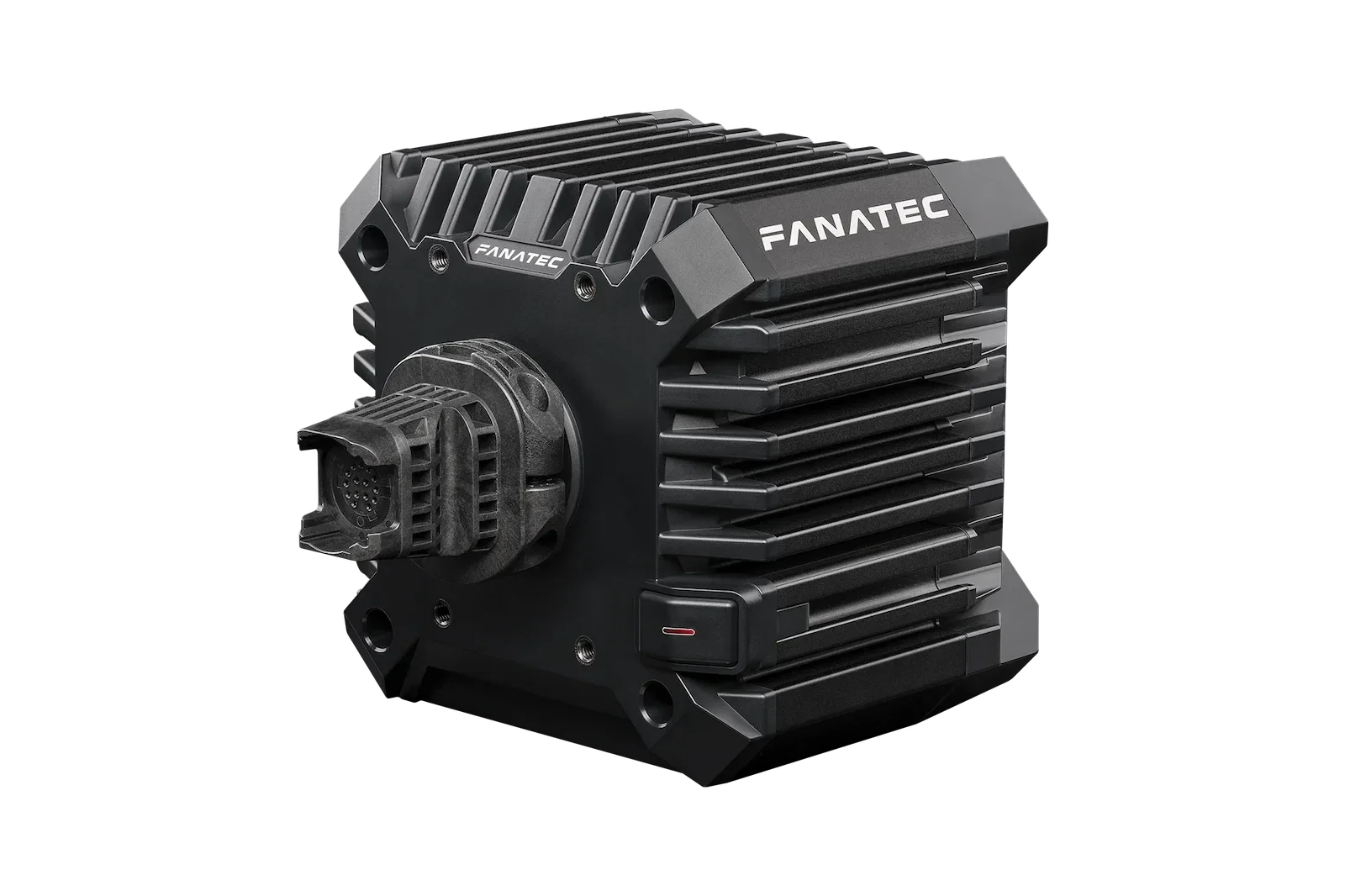

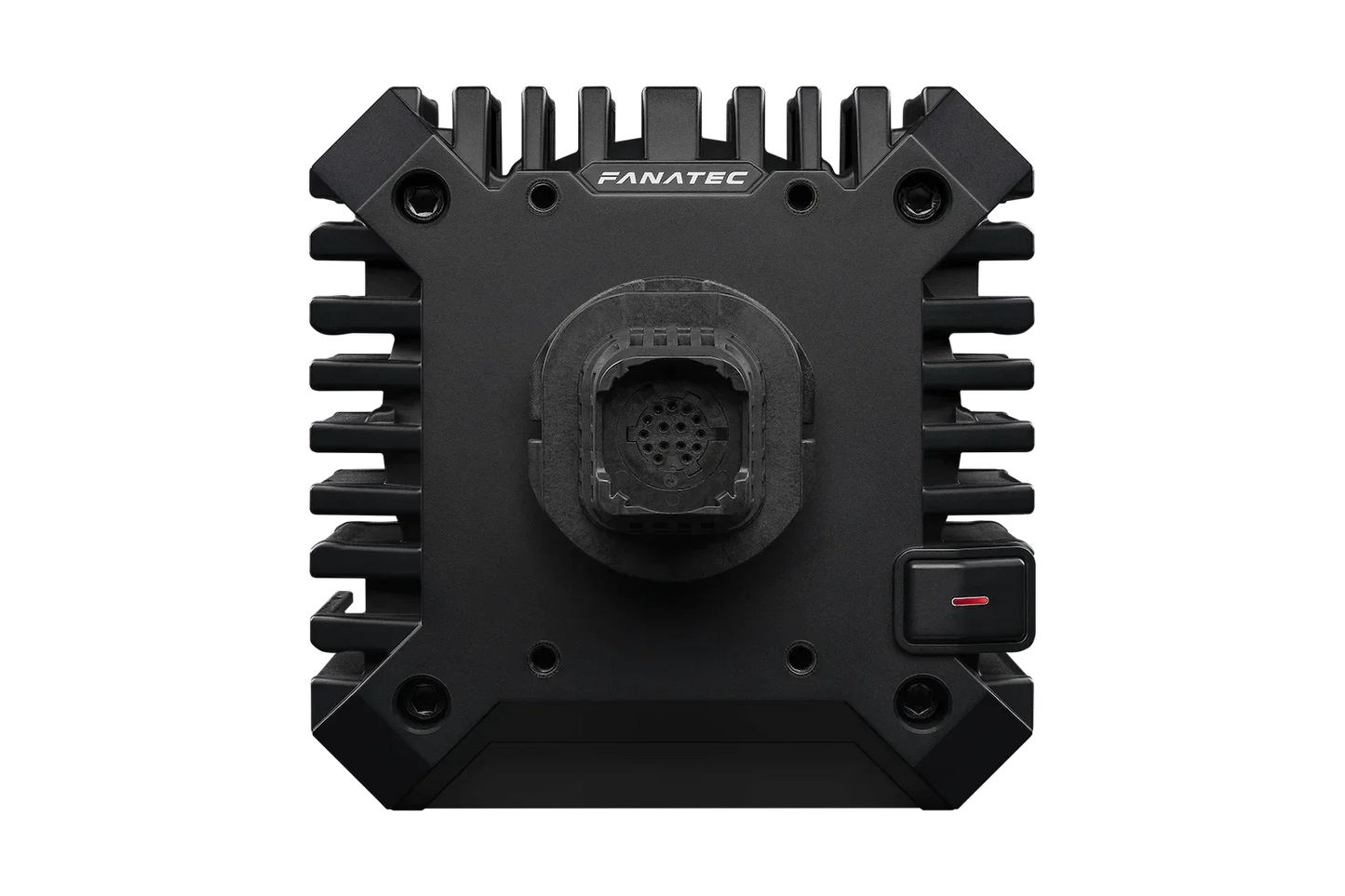

Fanatec CSL DD incl. PSU 90 + QR2L (5 NM)

Features

• Direct-Drive system delivers instant, detailed force feedback

• Linear, consistent performance (5 Nm peak torque)

• Optional Boost Kit 180 (sold separately) unlocks maximum strength (8 Nm peak torque)

• Patented, exclusive FluxBarrier technology optimises motor efficiency and smoothness

• Full Fanatec SDK support ensures game compatibility out of the box for all major racing games

• Standard Tuning Menu allows beginners to get started quickly without having to worry about settings

• Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences

• High-resolution (contactless) Hall-position-sensor, same as Podium Series

• Steering axis made from carbon fibre-enhanced composite

• Fanless: wheel base housing is made from aluminium (passive heat sink, core structural component) with composite end caps

• Rotation: 2520 degrees (electronically limited, adjustable)

• Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data to steering wheels

• QR2 quick release system

  • Motorsport-derived quick release

  • Tapered shape naturally ensures a tight fit

  • Carbon fibre-reinforced polyamide construction

  • Exchangeable

• T-nut rail system on sides and bottom for easily adjustable hard-mounting

• Optional table clamp (sold separately), supports 5 to 60 mm table thickness

• Ports:

  • Power supply

  • USB-C to PC / console

  • Fanatec DataPort-C

  • Shifter 1

  • Shifter 2 (Sequential only)

  • Pedal

  • Handbrake

• Front-mounted threaded inserts for Fanatec accessories (e.g. ClubSport Static Shifter Paddles, available separately). Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.
