MOZA MGX1000 Instrument Panel
MOZA MGX1000 Instrument Panel
Couldn't load pickup availability
A G1000-style instrument panel for general aviation simulation, combining a true-size 10.4-inch display, DisplayLink video, tactile avionics controls, and flexible mounting for advanced home cockpit builds.
Authentic Garmin G1000 Experience
Experience true-to-size Garmin G1000 simulation with a 10.4-inch IPS display, DisplayLink connectivity, precision controls, and seamless integration with modern flight simulators.
Authentic Flight Deck Experience
A precision-engineered 1:1 panel layout recreates the look, feel, and workflow of the Garmin G1000 for an immersive flight experience.
True-to-Size 10.4" IPS Display
A 10.4-inch IPS display matches the dimensions of a real G1000, delivering vivid color, sharp detail, and up to 500 nits of brightness.
DisplayLink Connectivity
DisplayLink video transmission eliminates the need for HDMI and dedicated GPU ports, simplifying multi-display cockpit setups.
High-Precision Controls
Tactile buttons, precision rotary encoders, and a 7-way ALPS joystick deliver responsive, authentic avionics control.
Adjustable Cockpit Lighting
Independently adjust screen brightness, character illumination, and button lighting, with real-time synchronization through MOZA Cockpit.
Seamless Software Integration
Configure each panel as a Primary Flight Display (PFD) or Multi-Function Display (MFD) through MOZA Cockpit for effortless setup.
Slim, Lightweight Design
Engineered with a slim, lightweight profile to reduce mounting stress while making cockpit integration easier and more flexible.
Flexible Mounting
Supports desktop, aluminum-profile cockpit rigs, integrated chassis mounting, and standard 75 × 75 mm VESA mounting.
MOZA MGX1000 Instrument Panel
Dimensions: 304 × 201 × 66.8 mm
Material: ABS + PC
Weight: 1.17 kg
Screen Size: 10.4-inch
Resolution: 1024 × 768

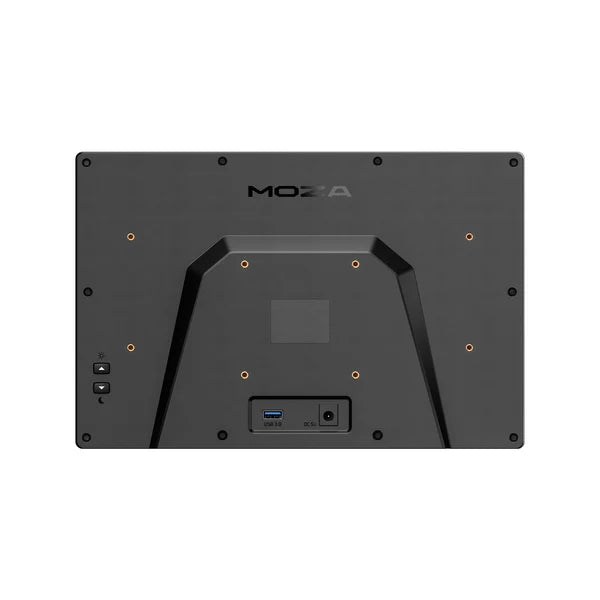

Connection Ports: USB-A, DC 5 V
Rated Voltage: 5 V (USB), 5 V (DC)
Rated Current: 900 mA (USB), 2 A (DC)
Supported Platform: PC
Mounting Options: Desktop stand, 75 × 75 mm VESA mount, also supports bottom mounting
Included Accessories: 1.5 m USB 3.0 Type-A Cable, Desktop Stand, Power Adapter
